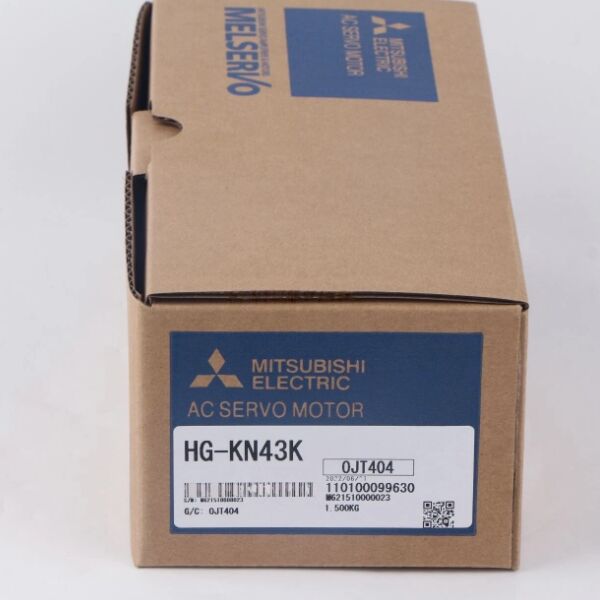

HG-KN43K Industrial Servo Drives AC 220V / AC 380V -≤2200ml/Min 200-230v

Name: HG-KN43K Industrial Servo Drives AC 220V / AC 380V -≤2200ml/Min 200-230v
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: HG-KN43K
Price: 10000 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Giappone
Marca:	HG-KN43K
Certificazione:	CE
Numero di modello:	HG-KN43K

Informazione dettagliata

Luogo di origine:

Giappone

Marca:

HG-KN43K

Certificazione:

Numero di modello:

HG-KN43K

Amplificatori di uscita:

18.5

Portate:

-≤2200 ml/min

giri al minuto:

3000 giri al minuto

nput Volatge:

200-230v

Tensione in ingresso:

CA 220 V/CA 380 V

Voltaggio:

100-115V

Capacità:

15000 pc/al mese

Peso del prodotto:

0,2 kg

Evidenziare:

High Light

Evidenziare:

HG-KN43K industrial servo drive

AC 220V servo drive

380V industrial servo motor

Informazioni di trading

Quantità di ordine minimo:

Prezzo:

Contact

Imballaggi particolari:

Nuovo e originale

Tempi di consegna:

3-5 giorni

Termini di pagamento:

T/T, L/C

Capacità di alimentazione:

100

Descrizione di prodotto

HG-KN43K Industrial Servo Drives AC 220V / AC 380V -≤2200ml/Min 200-230v

HG-KN43K Description

The HG-KN43K is a low-inertia brushless AC servo motor designed for high-speed, high-precision motion control in compact industrial automation machinery. It delivers excellent dynamic response, stable torque output, and smooth low-speed operation, ideal for applications requiring rapid acceleration, deceleration, and frequent positioning. The motor features a keyed shaft for reliable torque transmission and is equipped with a high-resolution incremental encoder for accurate feedback. With a compact structure and strong environmental resistance, it ensures stable performance in continuous industrial operation.

HG-KN43K Key Features

Low-inertia design for outstanding acceleration and high-speed positioning performance
Keyed shaft structure for secure, non-slip torque transmission under heavy load
High-resolution incremental encoder for precise speed and position control
High overload capacity supporting up to 3x rated peak torque
Low cogging torque, low vibration, and low noise for smooth operation
IP67 protection rating for dustproof and water-resistant performance
Natural air cooling for continuous duty operation
Standard flange mounting for easy installation and system integration
Excellent anti-interference capability suitable for harsh industrial environments

HG-KN43K Materials & Applications

Materials

Housing: High-strength die-cast aluminum alloy with high thermal conductivity
Stator & Rotor: High-grade silicon steel laminations, high-performance permanent magnets, high-temperature-resistant copper windings
Shaft: Precision-ground hardened alloy steel with keyway, high rigidity and wear resistance
Encoder: Sealed optical incremental encoder with shock and vibration resistance
Bearings: High-precision long-life sealed ball bearings
Seals: Oil-resistant rubber seals to maintain IP67 protection

Typical Applications

High-speed assembly robots and pick-and-place systems
Semiconductor and electronic manufacturing equipment
Precision positioning tables and XY stages
Packaging, printing, labeling, and textile machinery
Small CNC machine tools and grinding machines
Medical devices and precision testing instruments
General automation requiring high response and precise motion control

HG-KN43K Important Parameters

Parameter	Specification
Part Number	HG-KN43K
Motor Type	Low-Inertia Brushless AC Servo Motor
Rated Output Power	0.4 kW
Rated Torque	1.3 N·m
Peak Torque	3.9 N·m
Rated Speed	3000 rpm
Maximum Speed	5000 rpm
Rotor Inertia	0.064 × 10⁻⁴ kg·m²
Rated Current	2.3 A
Encoder Type	Incremental Encoder
Shaft Type	Keyed shaft (K type)
Insulation Class	Class B
Protection Rating	IP67
Cooling Method	Natural air cooling
Operating Temperature	0°C ~ +40°C
Storage Temperature	-20°C ~ +70°C
Humidity	5–95% RH, non-condensing
Flange Size	60 × 60 mm
Shaft Diameter	φ14 mm
Weight	Approx. 1.0 kg
Certifications	CE, UL, cUL, RoHS
