| Item | Specifications | ||
|---|---|---|---|

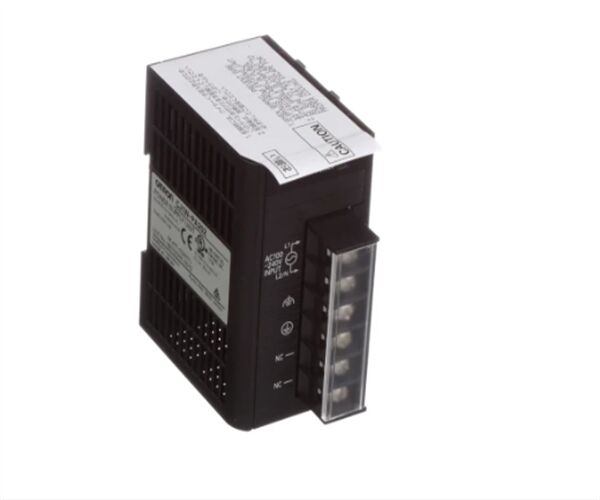

| Model | CJ1W-PA205R | CJ1W-PA205C | CJ1W-PA202 |
| Supply voltage | 100 to 240 V AC (wide-range), 50/60 Hz | ||
| Operating voltage and frequency ranges |
85 to 264 V AC, 47 to 63 Hz | ||
| Power consumption | 100 VA max. | 50 VA max. | |
| Inrush current *1 | At 100 to 120 V AC: 15 A/8 ms max. for cold start at room temperature At 200 to 240 V AC: 30 A/8 ms max. for cold start at room temperature |
At 100 to 120 V AC: 20 A/8 ms max. for cold start at room temperature At 200 to 240 V AC: 40 A/8 ms max. for cold start at room temperature |
|
| Output capacity *7 | 5.0 A, 5 V DC (including supply to CPU Unit) | 2.8 A, 5 V DC (including supply to CPU Unit) |
|
| 0.8 A, 24 V DC | 0.4 A, 24 V DC | ||
| Total: 25 W max. | Total: 14 W max. | ||
| Output terminal (service supply) |
Not provided. | ||
| RUN output *2 | Contact configuration: SPST-NO Switch capacity: 250 V AC, 2 A (resistive load) 120 V AC, 0.5 A (inductive load), 24 V DC, 2A (resistive load) 24 V DC, 2 A (inductive load) |
Not provided. | |
| Replacement notification function |
Not provided. | With Alarm output (open- collector output) 30 V DC max., 50 mA max. |
Not provided. |
| Insulation resistance | 20 MΩ min. (at 500 V DC) between AC external and GR terminals *3 |
20 MΩ min. (at 500 V DC) between all external terminals and GR terminal *3, and between all alarm output terminals. 20 MΩ 1 min. (at 250 V DC) between all alarm output terminals and GR terminal *3. |
20 MΩ min. (at 500 V DC) between AC external and GR terminals *3 |
| Dielectric strength *4 | 2,300 V AC 50/60 Hz for 1 min between AC external and GR terminals *3 Leakage current: 10 mA max. |
2,300 VAC, 50/60 Hz for 1 min between all external terminals and GR terminal *3 and between all alarm output terminals with a leakage current of 10 mA max. 1,000 V AC, 50/60 Hz for 1 min between all alarm output terminals and GR terminal *3 with a leakage current of 10 mA max. |
2,300 V AC 50/60 Hz for 1 min between AC external and GR terminals *3 Leakage current: 10 mA max. |
| 1,000 V AC, 50/60 Hz for 1 minute between DC external and GR terminals *3 Leakage current: 10 mA max. |
|||
| Noise immunity | 2 kV on power supply line (conforming to IEC61000-4-4) | ||
| Vibration resistance | Conforms to IEC60068-2-6 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min) |
||
| Shock resistance | Conforms to IEC60068-2-27 147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units) |
||
| Ambient operating temperature |
0 to 55 °C | ||
| Ambient operating humidity |
10% to 90% (with no condensation) |
10% to 90% (with no condensation) *5 |
10% to 90% (with no condensation) |
| Atmosphere | Must be free from corrosive gases. | ||
| Ambient storage temperature |
- 20 to 70 °C (excluding battery) |
- 20 to 75 °C *5 | - 20 to 75 °C (excluding battery) |
| Grounding | Less than 100 Ω | ||
| Enclosure | Mounted in a panel. | ||
| Weight | 350 g max. | 400 g max. | 200 g max. |
| CPU Rack dimensions |
90.7 to 466.7 × 90 × 65 mm (W × H × D) (not including cables) Note: W = a + b + 20 × n + 31 × m + 14.7 a: Power Supply Unit: PA205R and PA205C = 80; PA202 = 45; PD025 = 60; PD022=27 b: CPU Unit: CJ1-H or CJ1 = 62; CJ1M-CPU1[] = 31 *8; CJ1M-CPU2[] = 49 *8 The total width is given by the following: W = 156.7 + n × 20 + m × 31, where n is the number of 32-point I/O Units or I/O Control Units and m is the number of other Units. |
||
| Safety measures | Conforms to cULus and EC Directives. | ||
