2711P-RP1 Panel View Plus Logic Module 2711P-RP1

Description of  2711P-RP1

The 2711P-RP1 module is a logic module from Allen-Bradley/Rockwell Automation. It is compatible with a variety of display modules and terminals from the Allen-Bradley Panelview Plus series. The 2711P-RP1 logic module is specifically designed to work with Panelview 700 to 1500 series display modules. It contains the memory and the processor that the connected display module uses to operate. A complete Panelview Plus 700 to 1500 series control system consists of a display module and a logic module like the 2711P-RP1 logic module, and the system can be customized with optional devices such as communication modules.

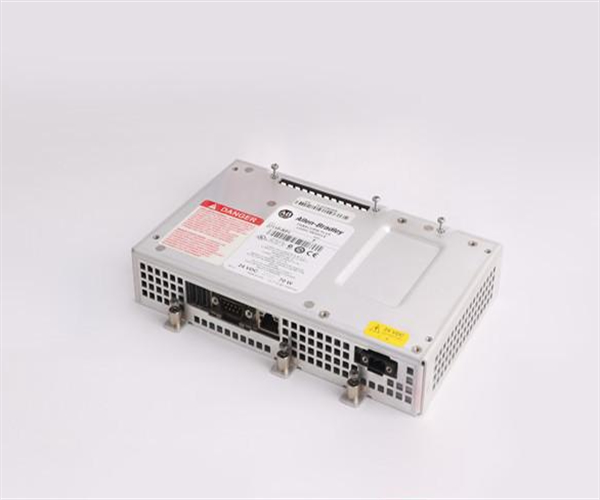

The Allen-Bradley 2711P-RP1 is a PanelView Plus component. This component is specifically a logic module that hosts a variety of interfaces and contains the necessary memory areas and processor of the PanelView Plus operator terminal.

The 2711P-RP1 is attached at the back of the display module. This display module comes with an internal memory amounting to 64 MB Random Access Memory (RAM), used for the operator terminals runtime interface, and 64 MB Flash, used for storing files such as application backup, manuals, logs, recipes, reports and other system files.

The 2711P-RP1 Logic modules connects to the display module circuitry through the PCI slot. When installing this module, proper grounding must be observed as the components within are highly sensitive to static electricity.

The 2711P-RP1 is compatible for use with PanelView Plus 700, 1000, 1250, and 1500 operator terminals. This unit is a replacement hardware as any PanelView Plus 700-1500 comes with a pre-installed logic module. Similarly, a fully-functional PanelView Plus operator terminal requires a logic module.

The 2711P-RP1 module is powered by an external 24VDC power supply. It comes with standard communication interface such as an Ethernet port, 9-Pin mini DIN RS232 port and USB ports. The ethernet port is used for connecting the PanelView terminal to one or more controllers over Ethernet I/P protocol while RS232 interface is used for peer-to-peer connection. Ethernet can cover longer distances with a maximum of 100 meters which can be easily extended. The RS232 connection is ideally used for short distances typically, within the panel communication. This logic module also comes with Two (2) USB ports for connecting peripheral devices such as keyboard and mouse.

It is bolted with 6 screws to the display module and it can carry a communication module which is attached to it after removing the grey label on the back side of the logic module. Always make sure that the display module is not power supplied when connecting the logic module to it. The WordPad text editor, Media Player, and remote desktop connection are some of the extended optional features available with this module. The 2711P-RP1 supports 2 USB connectors, 1 RS-232 connector, and 1 Ethernet port. It also has one CompactFlash Card Slot for inserting memory cards. Do not insert memory cards while the device is powered on. The module works safely only in surroundings with an ambient temperature between 0 and 55 degrees Celsius. The only maintenance that this unit requires is a visual inspection of the connectors and some cleaning from accumulated dust from time to time. The 2711P-RP1 works on 24 Volts of DC power. This module has built-in status indicators for process identification. Other slots available are the USB, CompactFlash, and Ethernet slots for efficient communication.
